SolarEdge Genesis 5-10kW 1 Phase

SolarEdge Genesis 5-10kW 1 Phase

Starts from $1306.00

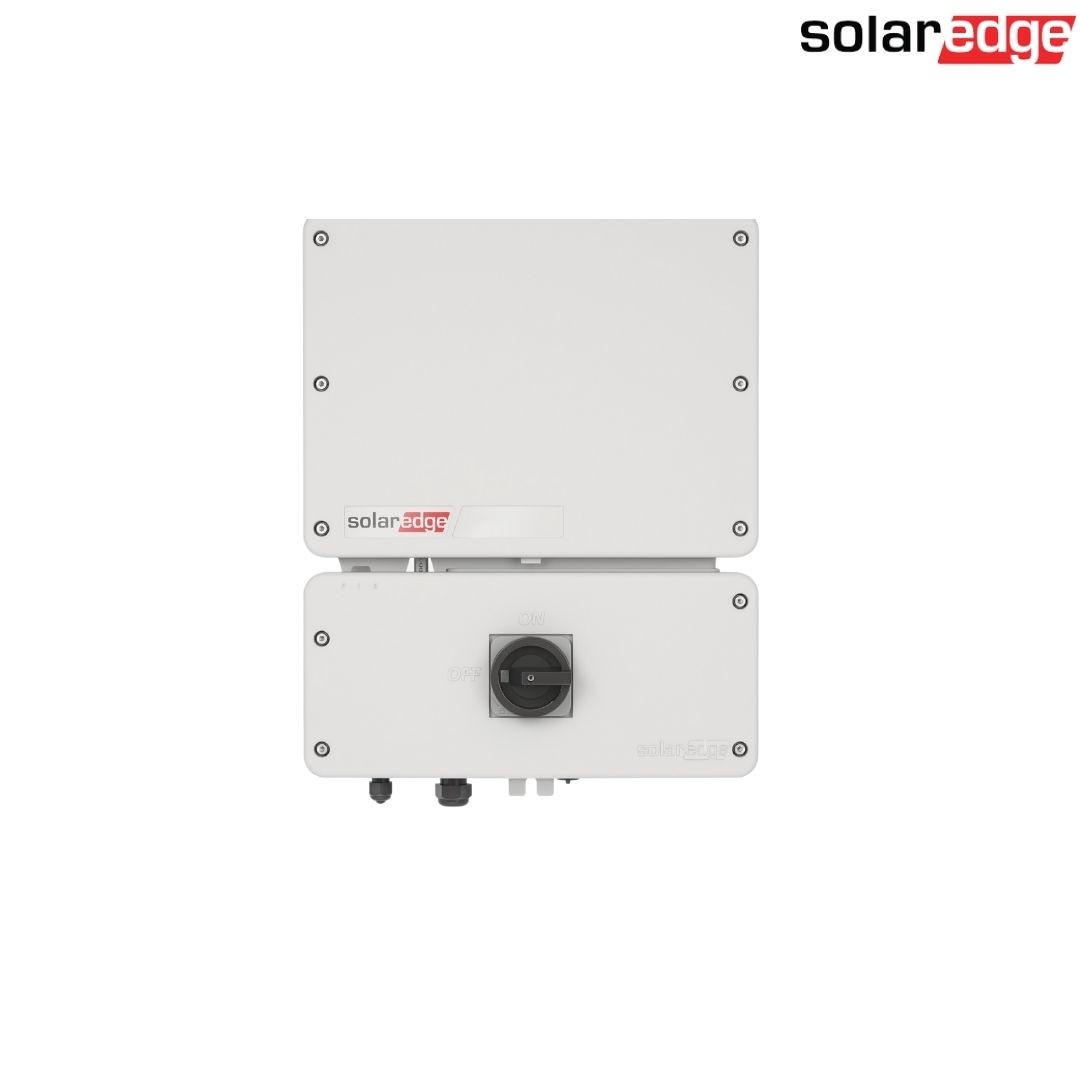

The SolarEdge Genesis 1-Phase HD-Wave Inverter series, available in 5kW, 6kW, 8.25kW, and 10kW models, is designed to optimize the energy output of residential PV systems in Australia. These inverters feature DC-optimized technology that enhances energy production while maintaining flexibility in system design. With record-breaking efficiency, these inverters ensure maximum energy yield from your solar array.

SOLARDEGE

Product Data Sheet

Warranty Information
  • HD-Wave Technology: Industry-leading efficiency and digital processing for reliable solar energy conversion.
  • Single-String Design: Allows for quicker installation and more flexible system designs.
  • Battery-Ready: Future-proof your investment with support for on-grid storage solutions.
  • Compact & Lightweight: Easy to install, with IP65 protection for outdoor and indoor applications.
  • Advanced Safety: Equipped with SafeDC™ and integrated arc fault protection for peace of mind.
  • Smart Commissioning: Setup is streamlined via the SolarEdge SetApp, ensuring a smooth installation process.
  • Versatile Options: Available in multiple power ratings (5kW, 6kW, 8.25kW, and 10kW) to suit various residential needs.

Specifications

  • Model Options: SE5000H, SE6000H, SE8250H, SE10000H
  • Rated AC Power Output: 5000 VA / 6000 VA / 8250 VA / 10000 VA
  • Maximum AC Power Output: 5000 VA / 6000 VA / 8250 VA / 10000 VA
  • AC Output Voltage: 220/230 Vac
  • AC Frequency: 50/60 Hz
  • Maximum DC Power Input: 10000 W / 12000 W / 16500 W / 20000 W
  • Maximum Inverter Efficiency: 99.2%
  • European Weighted Efficiency: 98.8% - 99.0%
  • Cooling: Natural convection
  • Operating Temperature Range: -40°C to +60°C
  • Protection Rating: IP65 (suitable for outdoor and indoor installations)
  • Dimensions: 450mm x 370mm x 174mm (for SE5000H/SE6000H) and 540mm x 370mm x 185mm (for SE8250H/SE10000H)
  • Weight: 11.4 kg / 11.9 kg / 17.6 kg (depending on model)
  • Noise Level: <25 dBA / <50 dBA
  • Connectivity: RS485, Ethernet, Wi-Fi (optional, sold separately)
  • Safety Features: SafeDC™, integrated arc fault protection
