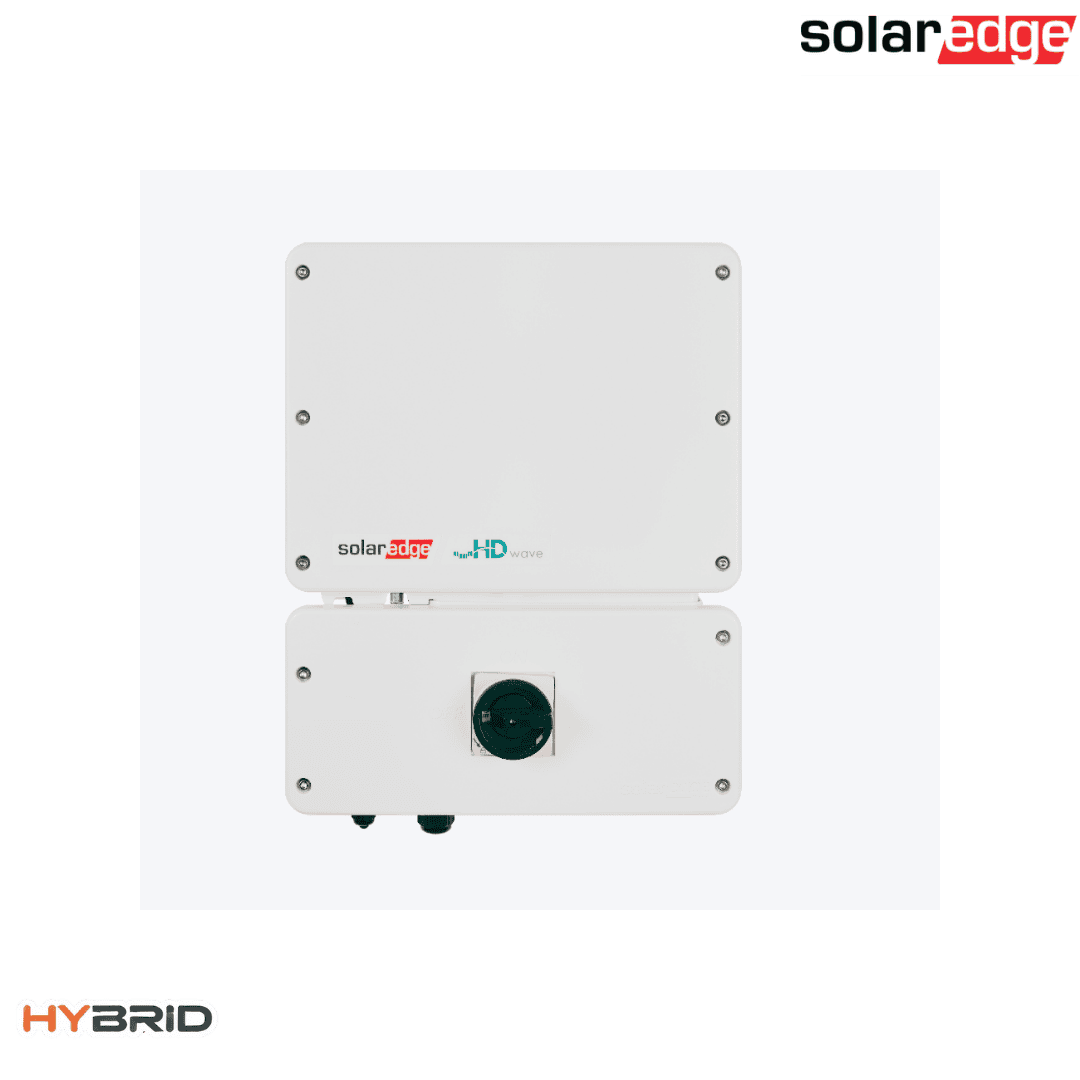

SolarEdge Home Hub 5-10kW 1 Phase

SolarEdge Home Hub 5-10kW 1 Phase

Starts from $2035.00

The SolarEdge Single Phase Home Hub Inverter is an advanced solution tailored for solar energy systems in residential setups across Australia. Available in 5kW, 6kW, 8.25kW, and 10kW variants, this inverter is designed to maximize energy yield with up to 300% DC oversizing and boasts a record-breaking 99% efficiency. With integrated battery storage capabilities, the Home Hub Inverter ensures that homes can benefit from full backup power, enhanced safety features, and future-ready upgrades like EV charging integration.

SOLARDEGE

Product Data Sheet

Warranty Information
  • Optimized battery storage with SolarEdge's HD-Wave technology
  • Single string design for simplified installations up to 5kW AC
  • Future-ready modular design, offering easy upgrades
  • Full home backup power capabilities
  • High efficiency DC-coupled storage
  • Integrated safety features including SafeDC™, rapid shutdown, and arc fault protection
  • Built-in consumption monitoring for better energy management
  • Seamless inverter commissioning via smartphone using the SolarEdge SetApp
  • Compact, lightweight, and easy to install
  • Durable IP65-rated for both indoor and outdoor use

Specifications

  • Models Available: SE3000H-MM, SE5000H-MM, SE6000H-MM, SE8250H-MM, SE10000H-MM
  • Output Power: 5kW / 6kW / 8.25kW / 10kW
  • Efficiency: Up to 99%
  • Backup Power: 4.5kW - 9kW depending on the model
  • AC Output Voltage: 220/230 Vac
  • DC Input Voltage: 480 Vdc max, 380 Vdc nominal
  • Battery Support: SolarEdge Home Battery, up to 3 batteries per inverter
  • Operating Temperature: -40°C to +60°C
  • Protection Rating: IP65 (suitable for indoor and outdoor installation)
  • Communication: Wi-Fi, Ethernet, RS485, SolarEdge Home Network
  • Weight: <15 kg
  • Cooling: Natural convection
