Tesla Backup Gateway 2 - Energy Management for Powerwall Systems

Tesla Backup Gateway 2

Starts from $1700.00

The Tesla Backup Gateway 2 is an essential component for any Powerwall installation, offering advanced energy management and monitoring capabilities. It seamlessly connects your Powerwall system to the grid, ensuring you can store energy from solar or the grid and use it during peak times or outages. This gateway is vital for providing backup power, as it detects outages and island your home from the grid to ensure continuous energy supply. With support for up to 10 Powerwall 2 units or 4 Powerwall 3 units per installation, Backup Gateway 2 ensures optimal system performance, making it an indispensable element for managing solar self-consumption and time-based control of energy.

TESLA ENERGY

Product Data Sheet

Warranty Information
  • Required for all Tesla Powerwall 2 and Powerwall 3 installations.
  • Manages solar self-consumption and grid-tied energy storage systems.
  • Provides seamless backup power during outages, with automatic grid isolation.
  • Supports up to 10 Powerwall 2 units or 4 Powerwall 3 units per site.
  • Advanced monitoring via the Tesla mobile app to track energy usage and performance.
  • Rated for both indoor and outdoor installation, ensuring reliability in various climates.
  • Designed with robust safety features, including overcurrent and short circuit protection.

The Tesla Backup Gateway 2 is the key to unlocking the full potential of your Powerwall system, providing uninterrupted power management and advanced grid connectivity.




Specifications

  • AC Voltage: 230 V (Line-to-Neutral), 400 V (Line-to-Line)
  • Grid Frequency: 50 Hz
  • Maximum Input Short Circuit Current: 10 kA
  • Maximum Overcurrent Protection Device: 100 A (single-phase service), 80 A (2- or 3-phase service)
  • Operating Temperature Range: -20°C to 50°C
  • Ingress Protection: IP55

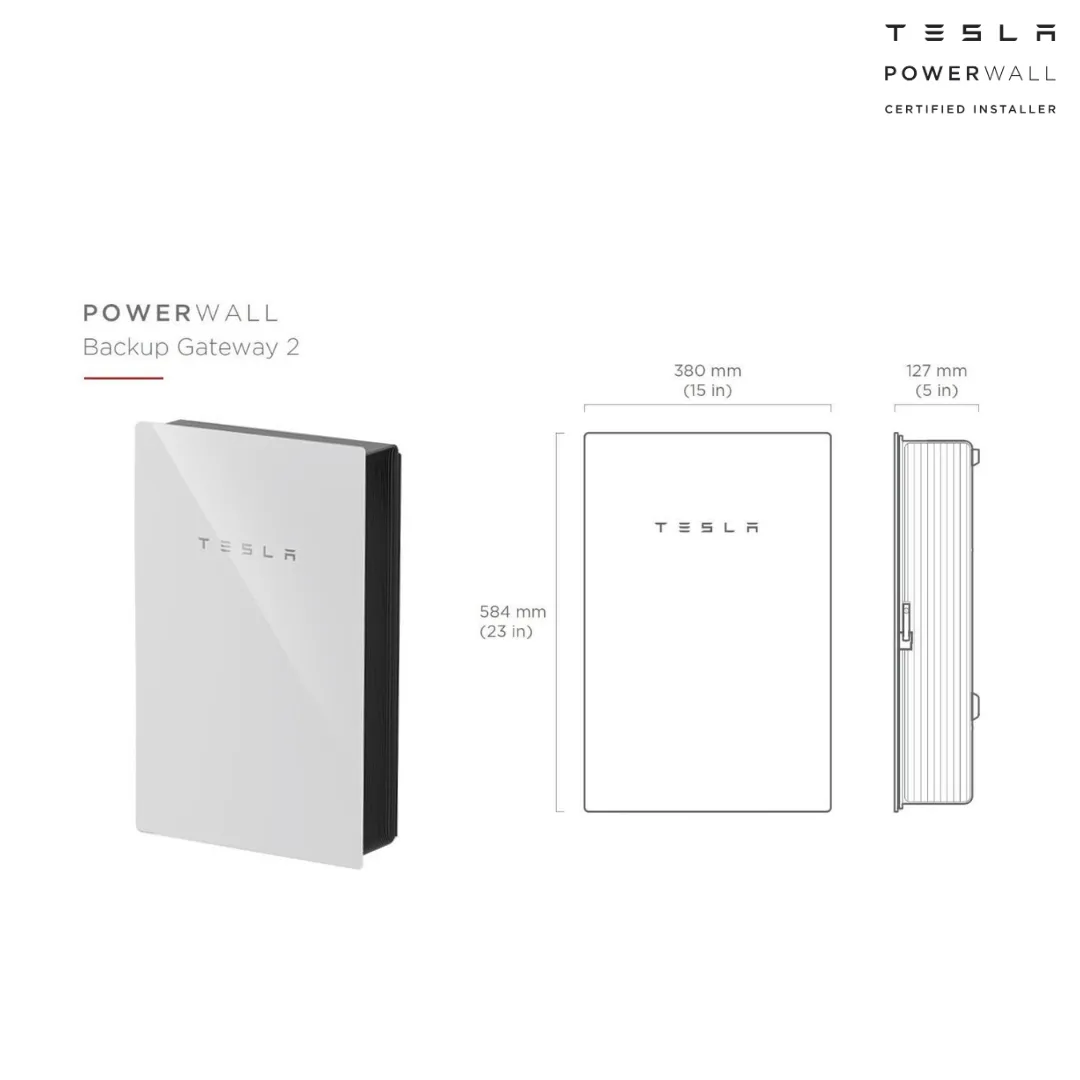

  • Dimensions: 584 mm x 380 mm x 127 mm
  • Weight: 11.4 kg
  • Mounting Options: Wall mount
  • Connectivity: Wi-Fi, Ethernet, Cellular
  • Warranty: 10 years
  • Certifications: IEC 62109-1, IEC 61439-1, IEC 62053-22, AS/NZS 4777.2
  • Safety: Integrated arc fault protection, isolation monitor interrupter, and dynamic response mode interface
